High Efficiency BMS Testing Machine Lithium Ion Battery Tester Machine

Name: High Efficiency BMS Testing Machine Lithium Ion Battery Tester Machine
Brand: XWELL
Price: 4000 USD

Brand Name : XWELL

Model Number : 24s bms tester

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 4000 - 6500 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Applicable Industries : Battery bms test

Voltage : 220VAC

Maximum Power : 1000W

estable type : LiFePO4, LiCoO3

Reference voltage : Ternary lithium(3.8V), Lithium iron phosphate(3.0V)

Over discharge protection : 0-5V ±5mv

Over discharge protection released : 0-5V ±5mv

Contact Now

Bms Test Machine Lithium Ion High Efficiency Battery Testing Tester Machine

he PBTS series multi-function BMS board testing machine is mainly used to testing the BMS board specifications is within the parameters which declared by the BMS board supplier, so as to provide a set of testing standards for the staff. It is suitable for power battery BMS board manufacturers and power battery pack manufacturers.

The test functions are:

1) overcharge protection voltage

2) overcharge recovery voltage

3) over discharge protection voltage

4) over discharge recovery voltage

5) over discharge current protection

6) short circuit protection performance test

7) charging current protection

9) equalization opening voltage

10) equalization real-time current

11) BMS board total consumption

12) single section self consumption current

13) overcharge protection delay

14) over discharge protection delay

15) overcurrent protection delay

16) internal resistance

Features:
1, Short circuit protection test
2, Self consumption of each PCB board test
3, Equalizing current and balance voltage test

Specification

Parameter	Test Range	Accuracy
Number of Testing Series	1-6 series optional
Voltage Reference	Ternary Battery:3.8V Lithium Battery: 3V
Overcharge/Overdischarge Protection Voltage	0.5-5V	±5mV
Overcharge/Overdischarge Voltage	0.5-5V	±5mV
Overcharge Protection Current	0-50A	±0.1A
Over-discharge Protection Current	0-120A	±0.1A
Equilibrium Open Voltage	0.5-5V	±5mV
Equilibrium Real-time Current	0-200mA	±1mA
Overcurrent Protection Delay	0-15S	±1mS
Overcharge/Overdischarge Protection Delay	0-20S	±1mS
Single-section Self-consuming Power	0-500uA	±1uA
Internal Loop Resistance	0-500mΩ	±1mΩ
Short Circuit Protection (more than 6 series)	0-9999us	±1us
Supply Voltage	220VAC
Maximum Power	600W
Current Level	60-120A
Machine Size	420430220mm

Detail

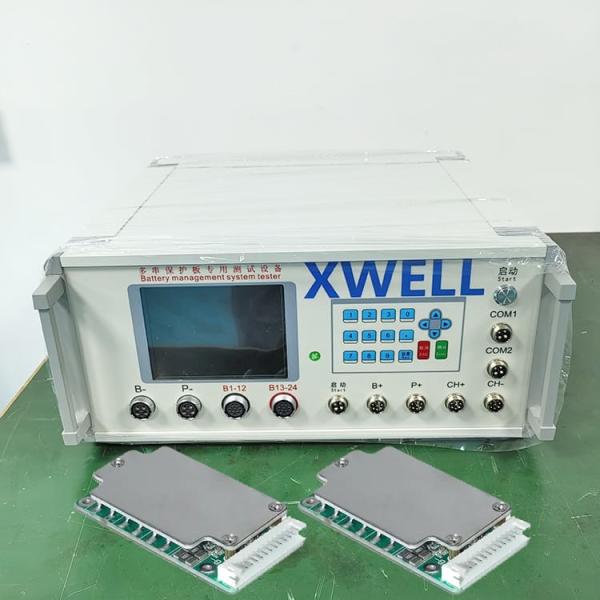

High Efficiency BMS Testing Machine Lithium Ion Battery Tester Machine
